TIR 6 bulbs led ambulance warning lights car surface mount lighthead

Share to:

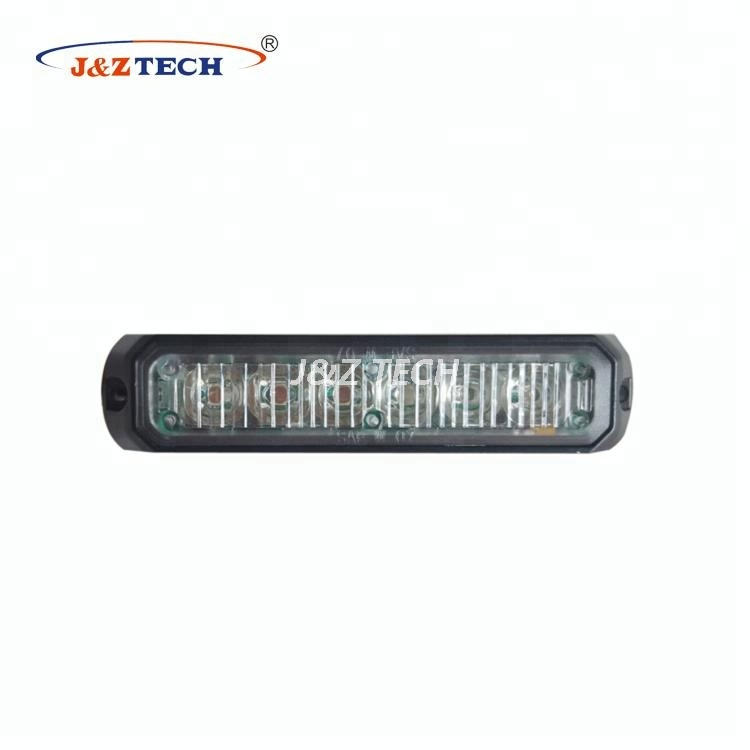

TIR 6 bulbs led ambulance warning lights car surface mount lighthead

Unique design LED TIR Thinnest 6 ×3W LED Surface mount lighthead

Availability:

Model:
LED-F6
Brand:
J&Z

Specifications

F6 Lighthead

.Weight:0.09kg

.Voltage: 12-24VDC

.All 6*3W LED surface mount lighthead

.Weather and vibration resistant

.Self-contained 16 patterns ,Alternating or simultaneous flashing

.5 wires for simple set-up - 1 pos, 1 Neg, 1 sync, 1 pattern, 1 Wigwag

.Aluminum housing base

Best selling 6 LEDs 18W LED flash strobe blue ice warning light

Product Description

F3
86.2mm L * 27.6mm W x 16.2mm W

F4
96.1mm L * 27.6mm W x 16.2mm W

F6
124.1mm L * 27.6mm W x 16.2mm W

There are 3 type pictures (3 LEDs, 4 LEDs, 6LEDs) + 5 wires +Per 3Watt LEDs +Aluminum housing base

Project case

Put F4 lights in a plastic bag, white box or color box, carton at last

Detailed Images

The demension:124.1mm L x 27.6mm W x 16.2mm H

There is rubber pad in the behind and screw for mounting

There are three sizes, F3,F4 and F6

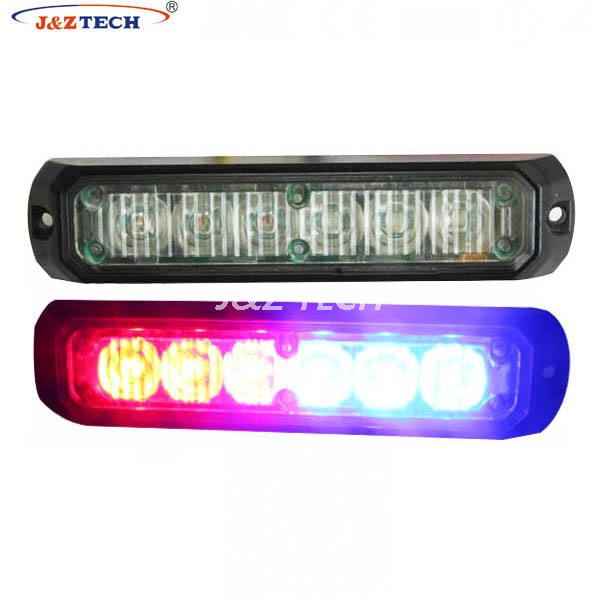

6LEDs Strobe LED car surface light

Our factory use per 3Watt Max Gen LEDs, very bright in daytime and nightime.12-24VDC
There are 5 wires for simple set up: 1pos, 1neg,1sync,1pattern,1wigwag.
Alternating or simultaneous flashing.

Weather and vibration resistant
Self-contained 16 patterns
We offer 2 years warrantee and 1 MOQ

Application mode

Red--------To + VDC (fuse @3A)Black--------To Chassis Ground
Yellow--------Synchronization
-Connect Yellow wires of all heads together for Synchronization
-All heads must be on same flash pattern to be able to sync
White--------Pattern selection
-To select flash pattern,apply white to black
-Less than 1 second for next pattern
-3-5 second for last pattern
-More than 5 second for steady burn or reset
Blue--------Wig Wag function

Three sizes for option

F6

F4

F3
