| Quantity: | |
|---|---|
LED-9039
jinzheng
Item | Parameter |
|---|---|
Power | 3W |
Overall Diameter | 69mm |
Cutout Size | 55‑60mm |
Fixture Height | 14mm |
Shape | Round Recessed |
Mounting | Spring‑clip recessed installation |
Key Features
• Ultra‑thin 14mm body, ideal for shallow ceiling renovation
• Spring‑clip structure for quick and easy installation
• 3W low‑power design, energy‑saving for accent lighting
• Classic white round trim, matches most interior decoration styles
• Suitable for hallway, cabinet, showcase, hotel & shop local lighting

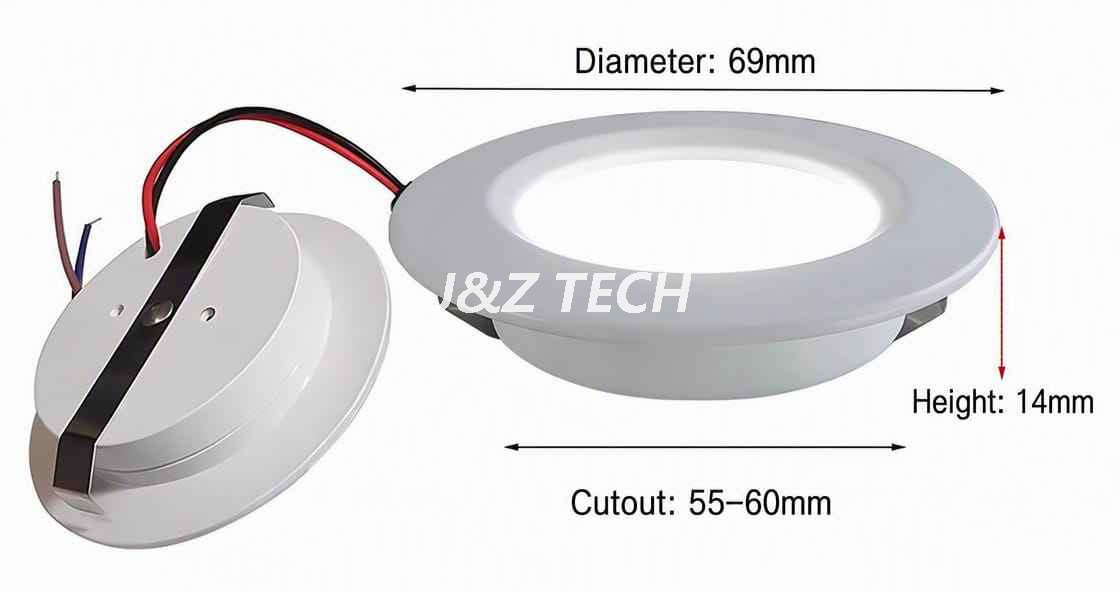

Dimension Notes
‑ Overall diameter: 69 mm, covers ceiling gap nicely
‑ Recommended cut‑out: 55‑60 mm for stable fixation
‑ Required ceiling depth: ≥14 mm
Installation Instructions
Make 55‑60 mm round cut‑out on ceiling.
Connect power wires.
Squeeze two spring‑clips, push fixture into ceiling opening.
Springs expand to hold light firmly, installation finished.
Note: Minimum ceiling inner depth ≥14 mm.
Package Includes
1 × 3W LED Downlight
