J&Z TECH 12V-24V Surface Mount 6-LED Warning Grille Strobe Light

• Extreme Brightness & High Warning Impact: Equipped with 6 x 3-watt high-intensity LEDs (18W total) that project ultra-bright warning signals to maximize vehicle safety and nighttime visibility.

• Heavy-Duty Die-Cast Aluminum Housing: Crafted with a premium die-cast aluminum base that provides excellent heat dissipation, significantly extending the LED lifespan up to 100,000 hours.

• Advanced Wiring & Flash Coordination: Features a professional 5-wire setup supporting both Synchronous and Asynchronous (Wig-Wag) flash configurations, allowing seamless pattern coordination across multiple strobe units.

• IP65 All-Weather Waterproofing: Fully sealed and certified with an IP65 waterproof and dustproof rating, ensuring flawless performance in heavy rain, snow, and dusty environments.

• Dual-Voltage Compatibility: Supports a wide 12V-24V DC operating range, making it universally compatible with cars, trucks, SUVs, trailers, and heavy-duty industrial machinery.

Technical Specifications

• Brand: J&Z TECH

• Manufacturer: Wenzhou Jinzheng Safety Technology Co., Ltd.

• Product Type: Surface Mount Car Grille Strobe Warning Light

• Light Source: 6 x 3W High-Intensity LEDs (18W Total Power)

• Operating Voltage: 12V - 24V DC (Universal Fit)

• Waterproof Rating: IP65 Certified

• Material: Premium Die-Cast Aluminum Base + High-Impact Optical PC Lens

• Lifespan: Up to 100,000 Hours

• Flash Patterns: 16 Types of Selectable Flash Patterns (Includes steady burn and memory recall)

• Certifications: CE, RoHS, ECE R10, ISO9001

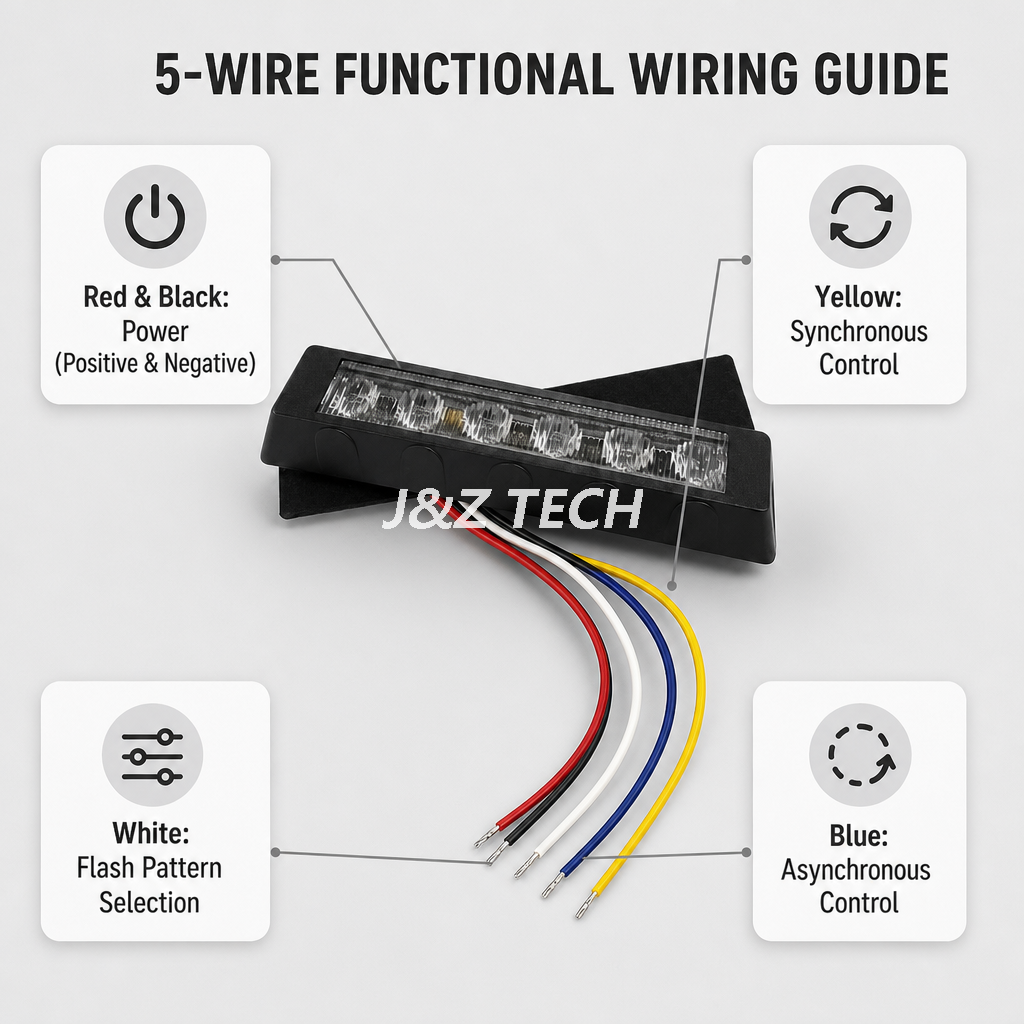

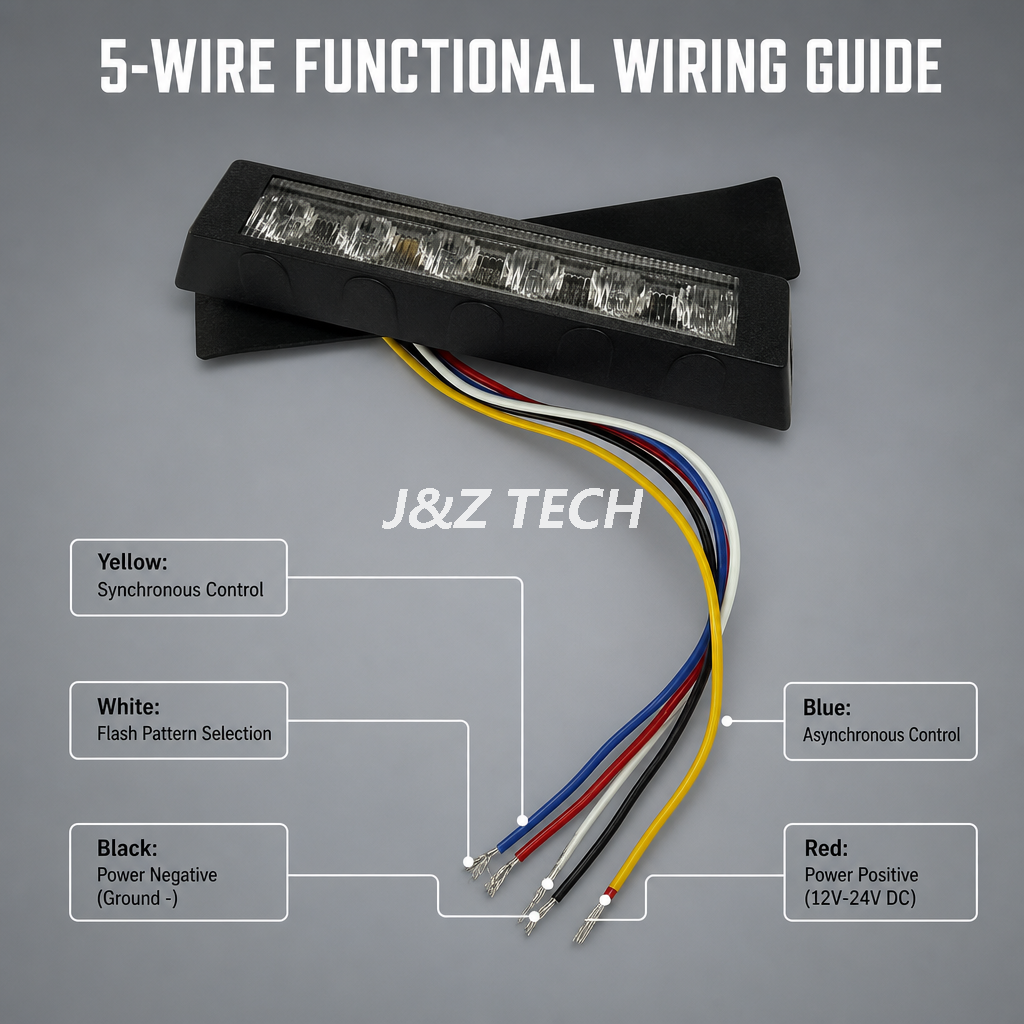

5-Wire Connection Definition

• Red Wire: Power Positive (+) 12V-24V DC

• Black Wire: Power Negative (Ground -)

• White Wire: Flash Pattern Selection (Touch to negative positive momentarily to switch patterns)

• Yellow Wire: Synchronous Control (Connect yellow wires of multiple units together for synchronous flashing)

• Blue Wire: Asynchronous Control (Wig-Wag) (Touch to Positive Connect blue wires together for alternating asynchronous flashing)

6 leds ion blue 12 24V grill led strobe light police led warning light

• Product Description

  Item Name	LED Lighthead
  Item No.	LED-A6
  Work Voltage	12-24V
  Light Source	3-watt LEDs
  Power	(4)*3-watt
  Work Temperature	-50 degree to 60 degree
  Dimension	11.7*3.8*3cm
  Material	Aluminum base+PC lens
  Certification	CE,RoHS
  LED Color	Red/Blue/Amber/White or combine color
  Quality Warranty	2 years

  Features:

  Weather and vibration resistant

  Self-contained 16 flash patterns

  Alternating or simultaneous flashing

  5 wires:1 pos,1 neg,1 sync,1 pattern,1 wig wag
